Friday, December 16, 2016

Nuts and Bolts of Building Deep Learning Applications: Ng @ NIPS2016

You might go to a cutting-edge machine learning research conference like NIPS hoping to find some mathematical insight that will help you take your deep learning system's performance to the next level. Unfortunately, as Andrew Ng reiterated to a live crowd of 1,000+ attendees this past Monday, there is no secret AI equation that will let you escape your machine learning woes. All you need is some rigor, and much of what Ng covered is his remarkable NIPS 2016 presentation titled "The Nuts and Bolts of Building Applications using Deep Learning" is not rocket science. Today we'll dissect the lecture and Ng's key takeaways. Let's begin.

Figure 1. Andrew Ng delivers a powerful message at NIPS 2016.


Andrew Ng and the Lecture
Andrew Ng's lecture at NIPS 2016 in Barcelona was phenomenal -- truly one of the best presentations I have seen in a long time. In a juxtaposition of two influential presentation styles, the CEO-style and the Professor-style, Andrew Ng mesmerized the audience for two hours. Andrew Ng's wisdom from managing large scale AI projects at Baidu, Google, and Stanford really shows. In his talk, Ng spoke to the audience and discussed one of they key challenges facing most of the NIPS audience -- how do you make your deep learning systems better? Rather than showing off new research findings from his cutting-edge projects, Andrew Ng presented a simple recipe for analyzing and debugging today's large scale systems. With no need for equations, a handful of diagrams, and several checklists, Andrew Ng delivered a two-whiteboards-in-front-of-a-video-camera lecture, something you would expect at a group research meeting. However, Ng made sure to not delve into Research-y areas, likely to make your brain fire on all cylinders, but making you and your company very little dollars in the foreseeable future.

Money-making deep learning vs Idea-generating deep learning
Andrew Ng highlighted the fact that while NIPS is a research conference, many of the newly generated ideas are simply ideas, not yet battle-tested vehicles for converting mathematical acumen into dollars. The bread and butter of money-making deep learning is supervised learning with recurrent neural networks such as LSTMs in second place. Research areas such as Generative Adversarial Networks (GANs), Deep Reinforcement Learning (Deep RL), and just about anything branding itself as unsupervised learning, are simply Research, with a capital R. These ideas are likely to influence the next 10 years of Deep Learning research, so it is wise to focus on publishing and tinkering if you really love such open-ended Research endeavours. Applied deep learning research is much more about taming your problem (understanding the inputs and outputs), casting the problem as a supervised learning problem, and hammering it with ample data and ample experiments.

"It takes surprisingly long time to grok bias and variance deeply, but people that understand bias and variance deeply are often able to drive very rapid progress."
--Andrew Ng


The 5-step method of building better systems
Most issues in applied deep learning come from a training-data / testing-data mismatch. In some scenarios this issue just doesn't come up, but you'd be surprised how often applied machine learning projects use training data (which is easy to collect and annotate) that is different from the target application. Andrew Ng's discussion is centered around the basic idea of bias-variance tradeoff. You want a classifier with a good ability to fit the data (low bias is good) that also generalizes to unseen examples (low variance is good). Too often, applied machine learning projects running as scale forget this critical dichotomy. Here are the four numbers you should always report:
  • Training set error
  • Testing set error
  • Dev (aka Validation) set error
  • Train-Dev (aka Train-Val) set error

Andrew Ng suggests following the following recipe:


Figure 2. Andrew Ng's "Applied Bias-Variance for Deep Learning Flowchart"
for building better deep learning systems.


Take all of your data, split it into 60% for training and 40% for testing. Use half of the test set for evaluation purposes only, and the other half for development (aka validation). Now take the training set, leave out a little chunk, and call it the training-dev data. This 4-way split isn't always necessary, but consider the worse case where you start with two separate sets of data, and not just one: a large set of training data and a smaller set of test data. You'll still want to split the testing into validation and testing, but also consider leaving out a small chunk of the training data for the training-validation. By reporting the data on the training set vs the training-validation set, you measure the "variance."

Figure 3. Human-level vs Training vs Training-dev vs Dev vs Test.
Taken from Andrew Ng's 2016 talk.


In addition to these four accuracies, you might want to report the human-level accuracy, for a total of 5 quantities to report. The difference between human-level and training set performance is the Bias. The difference between the training set and the training-dev set is the Variance. The difference between the training-dev and dev sets is the train-test mismatch, which is much more common in real-world applications that you'd think. And finally, the difference between the dev and test sets measures how overfitting.

Nowhere in Andrew Ng's presentation does he mention how to use unsupervised learning, but he does include a brief discussion about "Synthesis." Such synthesis ideas are all about blending pre-existing data or using a rendering engine to augment your training set.

Conclusion
If you want to lose weight, gain muscle, and improve your overall physical appearance, there is no magical protein shake and no magical bicep-building exercise. The fundamentals such as reduced caloric intake, getting adequate sleep, cardiovascular exercise, and core strength exercises like squats and bench presses will get you there. In this sense, fitness is just like machine learning -- there is no secret sauce. I guess that makes Andrew Ng the Arnold Schwarzenegger of Machine Learning.

What you are most likely missing in your life is the rigor of reporting a handful of useful numbers such as performance on the 4 main data splits (see Figure 3). Analyzing these numbers will let you know if you need more data or better models, and will ultimately let you hone in your expertise on the conceptual bottleneck in your system (see Figure 2).

With a prolific research track record that never ceases to amaze, we all know Andrew Ng as one hell of an applied machine learning researcher. But the new Andrew Ng is not just another data-nerd. His personality is bigger than ever -- more confident, more entertaining, and his experience with a large number of academic and industrial projects makes him much wiser. With enlightening lectures as "The Nuts and Bolts of Building Applications with Deep Learning" Andrew Ng is likely to be an individual whose future keynotes you might not want to miss.

Appendix
You can watch a September 27th, 2016 version of the Andrew Ng Nuts and Bolts of Applying Deep Learning Lecture on YouTube, which he delivered at the Deep Learning School. If you are working on machine learning problems in a startup, then definitely give the video a watch. I will update the video link once/if the newer NIPS 2016 version shows up online.

You can also check out Kevin Zakka's blog post for ample illustrations and writeup corresponding to Andrew Ng's entire talk.





Friday, June 17, 2016

Making Deep Networks Probabilistic via Test-time Dropout

In Quantum Mechanics, Heisenberg's Uncertainty Principle states that there is a fundamental limit to how well one can measure a particle's position and momentum. In the context of machine learning systems, a similar principle has emerged, but relating interpretability and performance. By using a manually wired or shallow machine learning model, you'll have no problem understanding the moving pieces, but you will seldom be happy with the results. Or you can use a black-box deep neural network and enjoy the model's exceptional performance. Today we'll see one simple and effective trick to make our deep black boxes a bit more intelligible. The trick allows us to convert neural network outputs into probabilities, with no cost to performance, and minimal computational overhead.

Interpretability vs Performance: Deep Neural Networks perform well on most computer vision tasks, yet they are notoriously difficult to interpret.










The desire to understand deep neural networks has triggered a flurry of research into Neural Network Visualization, but in practice we are often forced to treat deep learning systems as black-boxes. (See my recent Deep Learning Trends @ ICLR 2016 post for an overview of recent neural network visualization techniques.) But just because we can't grok the inner-workings of our favorite deep models, it doesn't mean we can't ask more out of our deep learning systems.

There exists a simple trick for upgrading black-box neural network outputs into probability distributions.

The probabilistic approach provides confidences, or "uncertainty" measures, alongside predictions and can make almost any deep learning systems into a smarter one. For robotic applications or any kind of software that must make decisions based on the output of a deep learning system, being able to provide meaningful uncertainties is a true game-changer.


Applying Dropout to your Deep Neural Network is like occasionally zapping your brain
The key ingredient is dropout, an anti-overfitting deep learning trick handed down from Hinton himself (Krizhevsky's pioneering 2012 paper). Dropout sets some of the weights to zero during training, reducing feature co-adaptation, thus improving generalization.
Without dropout, it is too easy to make a moderately deep network attain 100% accuracy on the training set.
The accepted knowledge is that an un-regularized network (one without dropout) is too good at memorizing the training set. For a great introductory machine learning video lecture on dropout, I highly recommend you watch Hugo Larochelle's lecture on Dropout for Deep learning.


Geoff Hinton's dropout lecture, also a great introduction, focuses on interpreting dropout as an ensemble method. If you're looking for new research ideas in the dropout space, a thorough understanding of Hinton's interpretation is a must.


But while dropout is typically used at training-time, today we'll highlight the keen observation that dropout used at test-time is one of the simplest ways to turn raw neural network outputs into probability distributions. Not only does this probabilistic "free upgrade" often improve classification results, it provides a meaningful notion of uncertainty, something typically missing in Deep Learning systems.
The idea is quite simple: to estimate the predictive mean and predictive uncertainty, simply collect the results of stochastic forward passes through the model using dropout.

How to use dropout: 2016 edition

  1. Start with a moderately sized network
  2. Increase your network size with dropout turned off until you perfectly fit your data
  3. Then, train with dropout turned on
  4. At test-time, turn on dropout and run the network T times to get T samples
  5. The mean of the samples is your output and the variance is your measure of uncertainty

Remember that drawing more samples will increase computation time during testing unless you're clever about re-using partial computations in the network. Please note that if you're only using dropout near the end of your network, you can reuse most of the computations. If you're not happy with the uncertainty estimates, consider adding more layers of dropout at test-time. Since you'll already have a pre-trained network, experimenting with test-time dropout layers is easy.

Bayesian Convolutional Neural Networks

To be truly Bayesian about a deep network's parameters, we wouldn't learn a single set of parameters w, we would infer a distribution over weights given the data, p(w|X,Y). Training is already quite expensive, requiring large datasets and expensive GPUs.
Bayesian learning algorithms can in theory provide much better parameter estimates for ConvNets and I'm sure some of our friends at Google are working on this already.
But today we aren't going to talk about such full Bayesian Deep Learning systems, only systems that "upgrade" the model prediction y to p(y|x,w). In other words, only the network outputs gain a probabilistic interpretation.

An excellent deep learning computer vision system which uses test-time dropout comes from a recent University of Cambridge technique called SegNet. The SegNet approach introduced an Encoder-Decoder framework for dense semantic segmentation. More recently, SegNet includes a Bayesian extension that uses dropout at test-time for providing uncertainty estimates. Because the system provides a dense per-pixel labeling, the confidences can be visualized as per-pixel heatmaps. Segmentation system is not performing well? Just look at the confidence heatmaps!

Bayesian SegNet. A fully convolutional neural network architecture which provides
per-pixel class uncertainty estimates using dropout.


The Bayesian SegNet authors tested different strategies for dropout placement and determined that a handful of dropout layers near the encoder-decoder bottleneck is better than simply using dropout near the output layer. Interestingly, Bayesian SegNet improves the accuracy over vanilla SegNet. Their confidence maps shown high uncertainty near object boundaries, but different test-time dropout schemes could provide a more diverse set of uncertainty estimates.

Bayesian SegNet: Model Uncertainty in Deep Convolutional Encoder-Decoder Architectures for Scene Understanding Alex Kendall, Vijay Badrinarayanan, Roberto Cipolla, in arXiv:1511.02680, November 2015. [project page with videos]


Confidences are quite useful for evaluation purposes, because instead of providing a single average result across all pixels in all images, we can sort the pixels and/or images by the overall confidence in prediction. When evaluation the top 10% most confident pixels, we should expect significantly higher performance. For example, the Bayesian SegNet approach achieves 75.4% global accuracy on the SUN RGBD dataset, and an astonishing 97.6% on most confident 10% of the test-set [personal communication with Bayesian SegNet authors]. This kind of sort-by-confidence evaluation was popularized by the PASCAL VOC Object Detection Challenge, where precision/recall curves were the norm. Unfortunately, as the research community moved towards large-scale classification, the notion of confidence was pushed aside. Until now.

Theoretical Bayesian Deep Learning

Deep networks that model uncertainty are truly meaningful machine learning systems. It ends up that we don't really have to understand how a deep network's neurons process image features to trust the system to make decisions. As long as the model provides uncertainty estimates, we'll know when the model is struggling. This is particularly important when your network is given inputs that are far from the training data.

The Gaussian Process: A machine learning approach with built-in uncertainty modeling

In a recent ICML 2016 paper, Yarin Gal and Zoubin Ghahramani develop a new theoretical framework casting dropout training in deep neural networks as approximate Bayesian inference in deep Gaussian processes. Gal's paper gives a complete theoretical treatment of the link between Gaussian processes and dropout, and develops the tools necessary to represent uncertainty in deep learning. They show that a neural network with arbitrary depth and non-linearities, with dropout applied before every weight layer, is mathematically equivalent to an approximation to the probabilistic deep Gaussian process. I have yet to see researchers use dropout between every layer, so the discrepancy between theory and practice suggests that more research is necessary.

Dropout as a Bayesian Approximation: Representing Model Uncertainty in Deep Learning Yarin Gal, Zoubin Ghahramani, in ICML. June 2016. [Appendix with relationship to Gaussian Processes]
A Theoretically Grounded Application of Dropout in Recurrent Neural Networks Yarin Gal, in arXiv:1512.05287. May 2016.
What My Deep Model Doesn't Know. Yarin Gal. Blog Post. July 2015

Test-time dropout is used to provide uncertainty estimates for deep learning systems.

In conclusion, maybe we can never get both interpretability and performance when it comes to deep learning systems. But, we can all agree that providing confidences, or uncertainty estimates, alongside predictions is always a good idea. Dropout, the very single regularization trick used to battle overfitting in deep models, shows up, yet again. Sometimes all you need is to add some random variations to your input, and average the results over many trials. Dropout lets you not only wiggle the network inputs but the entire architecture.

I do wonder what Yann LeCun thinks about Bayesian ConvNets... Last I heard, he was allergic to sampling.

Related Posts
Deep Learning vs Probabilistic Graphical Models vs Logic April 2015
Deep Learning Trends @ ICLR 2016 June 2016

Wednesday, June 01, 2016

Deep Learning Trends @ ICLR 2016

Started by the youngest members of the Deep Learning Mafia [1], namely Yann LeCun and Yoshua Bengio, the ICLR conference is quickly becoming a strong contender for the single most important venue in the Deep Learning space. More intimate than NIPS and less benchmark-driven than CVPR, the world of ICLR is arXiv-based and moves fast.



Today's post is all about ICLR 2016. I’ll highlight new strategies for building deeper and more powerful neural networks, ideas for compressing big networks into smaller ones, as well as techniques for building “deep learning calculators.” A host of new artificial intelligence problems is being hit hard with the newest wave of deep learning techniques, and from a computer vision point of view, there's no doubt that deep convolutional neural networks are today's "master algorithm" for dealing with perceptual data.

Deep Powwow in Paradise? ICLR 2016 was held in Puerto Rico.

Whether you're working in Robotics, Augmented Reality, or dealing with a computer vision-related problem, the following summary of ICLR research trends will give you a taste of what's possible on top of today's Deep Learning stack. Consider today's blog post a reading group conversation-starter.

Part I: ICLR vs CVPR
Part II: ICLR 2016 Deep Learning Trends
Part III: Quo Vadis Deep Learning?


Part I: ICLR vs CVPR

Last month's International Conference of Learning Representations, known briefly as ICLR 2016, and commonly pronounced as “eye-clear,” could more appropriately be called the International Conference on Deep Learning. The ICLR 2016 conference was held May 2nd-4th 2016 in lovely Puerto Rico. This year was the 4th installment of the conference -- the first was in 2013 and it was initially so small that it had to be co-located with another conference. Because it was started by none other than the Deep Learning Mafia, it should be no surprise that just about everybody at the conference was studying and/or applying Deep Learning Methods. Convolutional Neural Networks (which dominate image recognition tasks) were all over the place, with LSTMs and other Recurrent Neural Networks (used to model sequences and build "deep learning calculators") in second place. Most of my own research conference experiences come from CVPR (Computer Vision and Pattern Recognition), and I've been a regular CVPR attendee since 2004. Compared to ICLR, CVPR has a somewhat colder, more-emprical feel. To describe the difference between ICLR and CVPR, Yan LeCun, quoting Raquel Urtasun (who got the original saying from Sanja Fidler), put it best on Facebook.

CVPR: What can Deep Nets do for me?
ICLR: What can I do for Deep Nets?

The ICLR 2016 conference was my first official powwow that truly felt like a close-knit "let's share knowledge" event. 3 days of the main conference, plenty of evening networking events, and no workshops. With a total attendance of about 500, ICLR is about 1/4 the size of CVPR. In fact, CVPR 2004 in D.C. was my first conference ever, and CVPRs are infamous for their packed poster sessions, multiple sessions, and enough workshops/tutorials to make CVPRs last an entire week. At the end of CVPR, you'll have a research hangover and will need a few days to recuperate. I prefer the size and length of ICLR.

CVPR and NIPS, like many other top-tier conferences heavily utilizing machine learning techniques, have grown to gargantuan sizes, and paper acceptance rates at these mega conferences are close to 20%. It not necessarily true that the research papers at ICLR were any more half-baked than some CVPR papers, but the amount of experimental validation for an ICLR paper makes it a different kind of beast than CVPR. CVPR’s main focus is to produce papers that are ‘state-of-the-art’ and this essentially means you have to run your algorithm on a benchmark and beat last season’s leading technique. ICLR’s main focus it to highlight new and promising techniques in the analysis and design of deep convolutional neural networks, initialization schemes for such models, and the training algorithms to learn such models from raw data.

Deep Learning is Learning Representations
Yann LeCun and Yoshua Bengio started this conference in 2013 because there was a need to a new, small, high-quality venue with an explicit focus on deep methods. Why is the conference called “Learning Representations?” Because the typical deep neural networks that are trained in an end-to-end fashion actually learn such intermediate representations. Traditional shallow methods are based on manually-engineered features on top of a trainable classifier, but deep methods learn a network of layers which learns those highly-desired features as well as the classifier. So what do you get when you blur the line between features and classifiers? You get representation learning. And this is what Deep Learning is all about.

ICLR Publishing Model: arXiv or bust
At ICLR, papers get posted on arXiv directly. And if you had any doubts that arXiv is just about the single awesomest thing to hit the research publication model since the Gutenberg press, let the success of ICLR be one more data point towards enlightenment. ICLR has essentially bypassed the old-fashioned publishing model where some third party like Elsevier says “you can publish with us and we’ll put our logo on your papers and then charge regular people $30 for each paper they want to read.” Sorry Elsevier, research doesn’t work that way. Most research papers aren’t good enough to be worth $30 for a copy. It is the entire body of academic research that provides true value, for which a single paper just a mere door. You see, Elsevier, if you actually gave the world an exceptional research paper search engine, together with the ability to have 10-20 papers printed on decent quality paper for a $30/month subscription, then you would make a killing on researchers and I would endorse such a subscription. So ICLR, rightfully so, just said fuck it, we’ll use arXiv as the method for disseminating our ideas. All future research conferences should use arXiv to disseminate papers. Anybody can download the papers, see when newer versions with corrections are posted, and they can print their own physical copies. But be warned: Deep Learning moves so fast, that you’ve gotta be hitting refresh or arXiv on a weekly basis or you’ll be schooled by some grad students in Canada.

Attendees of ICLR
Google DeepMind and Facebook’s FAIR constituted a large portion of the attendees. A lot of startups, researchers from the Googleplex, Twitter, NVIDIA, and startups such as Clarifai and Magic Leap. Overall a very young and vibrant crowd, and a very solid representation by super-smart 28-35 year olds.

Part II: Deep Learning Themes @ ICLR 2016

Incorporating Structure into Deep Learning
Raquel Urtasun from the University of Toronto gave a talk about Incorporating Structure in Deep Learning. See Raquel's Keynote video here. Many ideas from structure learning and graphical models were presented in her keynote. Raquel’s computer vision focus makes her work stand out, and she additionally showed some recent research snapshots from her upcoming CVPR 2016 work.

Raquel gave a wonderful 3D Indoor Understanding Tutorial at last year's CVPR 2015.


One of Raquel's strengths is her strong command of geometry, and her work covers both learning-based methods as well as multiple-view geometry. I strongly recommend keeping a close look at her upcoming research ideas. Below are two bleeding edge papers from Raquel's group -- the first one focuses on soccer field localization from a broadcast of such a game using branch and bound inference in a MRF.

Raquel's new work. Soccer Field Localization from Single Image. Homayounfar et al, 2016.

Soccer Field Localization from a Single Image. Namdar Homayounfar, Sanja Fidler, Raquel Urtasun. in arXiv:1604.02715.

The second upcoming paper from Raquel's group is on using Deep Learning for Dense Optical Flow, in the spirit of FlowNet, which I discussed in my ICCV 2015 hottest papers blog post. The technique is built on the observation that the scene is typically composed of a static background, as well as a relatively small number of traffic participants which move rigidly in 3D. The dense optical flow technique is applied to autonomous driving.


Deep Semantic Matching for Optical Flow. Min Bai, Wenjie Luo, Kaustav Kundu, Raquel Urtasun. In arXiv:1604.01827.

Reinforcement Learning
Sergey Levine gave an excellent Keynote on deep reinforcement learning and its application to Robotics[3]. See Sergey's Keynote video here. This kind of work is still the future, and there was very little robotics-related research in the main conference. It might not be surprising, because having an assembly of robotic arms is not cheap, and such gear is simply not present in most grad student research labs. Most ICLR work is pure software and some math theory, so a single GPU is all that is needed to start with a typical Deep Learning pipeline.

An army of robot arms jointly learning to grasp somewhere inside Google.

Take a look at the following interesting work which shows what Alex Krizhevsky, the author of the legendary 2012 AlexNet paper which rocked the world of object recognition, is currently doing. And it has to do with Deep Learning for Robotics, currently at Google.

Learning Hand-Eye Coordination for Robotic Grasping with Deep Learning and Large-Scale Data Collection Sergey Levine, Peter Pastor, Alex Krizhevsky, Deirdre Quillen. In arXiv:1603.02199.

For those of you who want to learn more about Reinforcement Learning, perhaps it is time to check out Andrej Karpathy's Deep Reinforcement Learning: Pong From Pixels tutorial. One thing is for sure: when it comes to deep reinforcement learning, OpenAI is all-in.

Compressing Networks
Model Compression: The WinZip of
Neural Nets?
While NVIDIA might be today’s king of Deep Learning Hardware, I can’t help the feeling that there is a new player lurking in the shadows. You see, GPU-based mining of bitcoin didn’t last very long once people realized the economic value of owning bitcoins. Bitcoin very quickly transitioned into specialized FPGA hardware for running the underlying bitcoin computations, and the FPGAs of Deep Learning are right around the corner. Will NVIDIA remain the King? I see a fork in NVIDIA's future. You can continue producing hardware which pleases both gamers and machine learning researchers, or you can specialize. There is a plethora of interesting companies like Nervana Systems, Movidius, and most importantly Google, that don’t want to rely on power-hungry heatboxes known as GPUs, especially when it comes to scaling already trained deep learning models. Just take a look at Fathom by Movidius or the Google TPU.


But the world has already seen the economic value of Deep Nets, and the “software” side of deep nets isn't waiting for the FPGAs of neural nets. The software version of compressing neural networks is a very trendy topic. You basically want to take a beefy neural network and compress it down into smaller, more efficient model. Binarizing the weights is one such strategy. Student-Teacher networks where a smaller network is trained to mimic the larger network are already here. And don’t be surprised if within the next year we’ll see 1MB sized networks performing at the level of Oxford’s VGGNet on the ImageNet 1000-way classification task.

Summary from ICLR 2016's Deep Compression paper by Han et al.

This year's ICLR brought a slew of Compression papers, the three which stood out are listed below.

Deep Compression: Compressing Deep Neural Networks with Pruning, Trained Quantization and Huffman Coding. Song Han, Huizi Mao, and Bill Dally. In ICLR 2016. This paper won the Best Paper Award. See Han give the Deep Compression talk.

Neural Networks with Few Multiplications. Zhouhan Lin, Matthieu Courbariaux, Roland Memisevic, Yoshua Bengio. In ICLR 2016.

8-Bit Approximations for Parallelism in Deep Learning. Tim Dettmers. In ICLR 2016.

Unsupervised Learning
Philip Isola presented a very Efrosian paper on using Siamese Networks defined on patches to learn a patch similarity function in an unsupervised way. This patch-patch similarity function was used to create a local similarity graph defined over an image which can be used to discover the extent of objects. This reminds me of the Object Discovery line of research started by Alyosha Efros and the MIT group, where the basic idea is to abstain from using class labels in learning a similarity function.

Isola et al: A Siamese network has shared weights and can be used for learning embeddings or "similarity functions."


Learning visual groups from co-occurrences in space and time Phillip Isola, Daniel Zoran, Dilip Krishnan, Edward H. Adelson. In ICLR 2016.

Isola et al: Visual groupings applied to image patches, frames of a video, and a large scene dataset.


Initializing Networks: And why BatchNorm matters
Getting a neural network up and running is more difficult than it seems. Several papers in ICLR 2016 suggested new ways of initializing networks. But practically speaking, deep net initialization is “essentially solved.” Initialization seems to be an area of research that truly became more of a “science” than an “art” once researchers introduced BatchNorm into their neural networks. BatchNorm is the butter of Deep Learning -- add it to everything and everything will taste better. But this wasn’t always the case!

In the early days, researchers had lots of problems with constructing an initial set of weights of a deep neural network such that the back propagation could learn anything. In fact, one of the reasons why the Neural Networks of the 90s died as a research program, is precisely because it was well-known that a handful of top researchers knew how to tune their networks so that they could start automatically learning from data, but the other research didn’t know all of the right initialization tricks. It was as if the “black magic” inside the 90s NNs was just too intense. At some point, convex methods and kernel SVMs because the tools of choice — with no need to initialize in a convex optimization setting, for almost a decade (1995 to 2005) researchers just ran away from deep methods. Once 2006 hit, Deep Architectures were working again with Hinton’s magical deep Boltzmann Machines and unsupervised pretraining. Unsupervised pretaining didn’t last long, as researchers got GPUs and found that once your data set is large enough (think ~2 million images in ImageNet), that simple discriminative back-propagation does work. Random weight initialization strategies and cleverly tuned learning rates were quickly shared amongst researchers once 100s of them jumped on the ImageNet dataset. People started sharing code, and wonderful things happened!

But designing new neural networks for new problems was still problematic -- one wouldn't know exactly the best way to set multiple learning rates and random initialization magnitudes. But researchers got to work, and a handful of solid hackers from Google found out that the key problem was that poorly initialized networks were having a hard time flowing information through the networks. It’s as if layer N was producing activations in one range and the subsequent layers were expecting information to be of another order of magnitude. So Szegedy and Ioffe from Google proposed a simple “trick” to whiten the flow of data as it passes through the network. Their trick, called “BatchNorm” involves using a normalization layer after each convolutional and/or fully-connected layer in a deep network. This normalization layer whitens the data by subtracting a mean and dividing by a standard deviation, thus producing roughly gaussian numbers as information flows through the network. So simple, yet so sweet. The idea of whitening data is so prevalent in all of machine learning, that it’s silly that it took deep learning researchers so long to re-discover the trick in the context of deep nets.

Data-dependent Initializations of Convolutional Neural Networks Philipp Krähenbühl, Carl Doersch, Jeff Donahue, Trevor Darrell. In ICLR 2016. Carl Doersch, a fellow CMU PhD, is going to DeepMind, so there goes another point for DeepMind.


Backprop Tricks
Injecting noise into the gradient seems to work. And this reminds me of the common grad student dilemma where you fix a bug in your gradient calculation, and your learning algorithm does worse. You see, when you were computing the derivative on the white board, you probably made a silly mistake like messing up a coefficient that balances two terms or forgetting an additive / multiplicative term somewhere.  However, with a high probability, your “buggy gradient” was actually correlated with the true “gradient”. And in many scenarios, a quantity correlated with the true gradient is better than the true gradient.  It is a certain form of regularization that hasn’t been adequately addressed in the research community. What kinds of “buggy gradients” are actually good for learning? And is there a space of “buggy gradients” that are cheaper to compute than “true gradients”? These “FastGrad” methods could speed up training deep networks, at least for the first several epochs. Maybe by ICLR 2017 somebody will decide to pursue this research track.


Adding Gradient Noise Improves Learning for Very Deep Networks. Arvind Neelakantan, Luke Vilnis, Quoc V. Le, Ilya Sutskever, Lukasz Kaiser, Karol Kurach, James Martens. In ICLR 2016.

Robust Convolutional Neural Networks under Adversarial Noise Jonghoon Jin, Aysegul Dundar, Eugenio Culurciello. In ICLR 2016.

Attention: Focusing Computations
Attention-based methods are all about treating different "interesting" areas with more care than the "boring" areas. Not all pixels are equal, and people are able to quickly focus on the interesting bits of a static picture. ICLR 2016's most interesting "attention" paper was the Dynamic Capacity Networks paper from Aaron Courville's group at the University of Montreal. Hugo Larochelle, another key researcher with strong ties to the Deep Learning mafia, is now a Research Scientist at Twitter.
Dynamic Capacity Networks Amjad Almahairi, Nicolas Ballas, Tim Cooijmans, Yin Zheng, Hugo Larochelle, Aaron Courville. In ICLR 2016.


The “ResNet trick”: Going Mega Deep because it's Mega Fun
We saw some new papers on the new “ResNet” trick which emerged within the last few months in the Deep Learning Community. The ResNet trick is the “Residual Net” trick that gives us a rule for creating a deep stack of layers. Because each residual layer essentially learns to either pass the raw data through or mix in some combination of a non-linear transformation, the flow of information is much smoother. This “control of flow” that comes with residual blocks, lets you build VGG-style networks that are quite deep.

Inception-v4, Inception-ResNet and the Impact of Residual Connections on Learning Christian Szegedy, Sergey Ioffe, Vincent Vanhoucke. In ICLR 2016.



Resnet in Resnet: Generalizing Residual Architectures Sasha Targ, Diogo Almeida, Kevin Lyman. In ICLR 2016.

Deep Metric Learning and Learning Subcategories
A great paper, presented by Manohar Paluri of Facebook, focused on a new way to think about deep metric learning. The paper is “Metric Learning with Adaptive Density Discrimination” and reminds me of my own research from CMU. Their key idea can be distilled to the “anti-category” argument. Basically, you build into your algorithm the intuition that not all elements of a category C1 should collapse into a single unique representation. Due to the visual variety within a category, you only make the assumption that an element X of category C is going to be similar to a subset of other Cs, and not all of them. In their paper, they make the assumption that all members of category C belong to a set of latent subcategories, and EM-like learning alternates between finding subcategory assignments and updating the distance metric. During my PhD, we took this idea even further and build Exemplar-SVMs which were the smallest possible subcategories with a single positive “exemplar” member.

Manohar started his research as a member of the FAIR team, which focuses more on R&D work, but metric learning ideas are very product-focused, and the paper is a great example of a technology that seems to be "product-ready." I envision dozens of Facebook products that can benefit from such data-derived adaptive deep distance metrics.

Metric Learning with Adaptive Density Discrimination. Oren Rippel, Manohar Paluri, Piotr Dollar, Lubomir Bourdev. In ICLR 2016.


Deep Learning Calculators
LSTMs, Deep Neural Turing Machines, and what I call “Deep Learning Calculators” were big at the conference. Some people say, “Just because you can use deep learning to build a calculator, it doesn’t mean you should." And for some people, Deep Learning is the Holy-Grail-Titan-Power-Hammer, and everything that can be described with words should be built using deep learning components. Nevertheless, it's an exciting time for Deep Turing Machines.

The winner of the Best Paper Award was the paper, Neural Programmer-Interpreters by Scott Reed and Nando de Freitas. An interesting way to blend deep learning with the theory of computation. If you’re wondering what it would look like to use Deep Learning to learn quicksort, then check out their paper. And it seems like Scott Reed is going to Google DeepMind, so you can tell where they’re placing their bets.

Neural Programmer-Interpreters. Scott Reed, Nando de Freitas. In ICLR 2016.

Another interesting paper by some OpenAI guys is “Neural Random-Access Machines” which is going to be another fan favorite for those who love Deep Learning Calculators.

Neural Random-Access Machines. Karol Kurach, Marcin Andrychowicz, Ilya Sutskever. In ICLR 2016.

Computer Vision Applications
Boundary detection is a common computer vision task, where the goal is to predict boundaries between objects. CV folks have been using image pyramids, or multi-level processing, for quite some time. Check out the following Deep Boundary paper which aggregates information across multiple spatial resolutions.

Pushing the Boundaries of Boundary Detection using Deep Learning Iasonas Kokkinos, In ICLR 2016.

A great application for RNNs is to "unfold" an image into multiple layers. In the context of object detection, the goal is to decompose an image into its parts. The following figure explains it best, but if you've been wondering where to use RNNs in your computer vision pipeline, check out their paper.

Learning to decompose for object detection and instance segmentation Eunbyung Park, Alexander C. Berg. In ICLR 2016.

Dilated convolutions are a "trick" which allows you to increase your network's receptive field size and scene segmentation is one of the best application domains for such dilations.

Multi-Scale Context Aggregation by Dilated Convolutions Fisher Yu, Vladlen Koltun. In ICLR 2016.



Visualizing Networks
Two of the best “visualization” papers were “Do Neural Networks Learn the same thing?” by
Jason Yosinski (now going to Geometric Intelligence, Inc.) and “Visualizing and Understanding Recurrent Networks” presented by Andrej Karpathy (now going to OpenAI). Yosinski presented his work on studying what happens when you learn two different networks using different initializations. Do the nets learn the same thing? I remember a great conversation with Jason about figuring out if the neurons in network A can be represented as linear combinations of network B, and his visualizations helped make the case. Andrej’s visualizations of recurrent networks are best consumed in presentation/blog form[2]. For those of you that haven’t yet seen Andrej’s analysis of Recurrent Nets on Hacker News, check it out here.


Convergent Learning: Do different neural networks learn the same representations? Yixuan Li, Jason Yosinski, Jeff Clune, Hod Lipson, John Hopcroft. In ICLR 2016. See Yosinski's video here.


Visualizing and Understanding Recurrent Networks Andrej Karpathy, Justin Johnson, Li Fei-Fei. In ICLR 2016.

Do Deep Convolutional Nets Really Need to be Deep (Or Even Convolutional)?
Figure from Do Nets have to be Deep?
This was the key question asked in the paper presented by Rich Caruana. (Dr. Caruana is now at Microsoft, but I remember meeting him at Cornell eleven years ago) Their papers' two key results which are quite meaningful if you sit back and think about them. First, there is something truly special about convolutional layers that when applied to images, they are significantly better than using solely fully connected layers -- there’s something about the 2D structure of images and the 2D structures of filters that makes convolutional layers get a lot of value out of their parameters. Secondly, we now have teacher-student training algorithms which you can use to have a shallower network “mimic” the teacher’s responses on a large dataset. These shallower networks are able to learn much better using a teacher and in fact, such shallow networks produce inferior results when the are trained on the teacher’s training set.  So it seems you get go [Data to MegaDeep], and [MegaDeep to MiniDeep], but you cannot directly go from [Data to MiniDeep].


Do Deep Convolutional Nets Really Need to be Deep (Or Even Convolutional)? Gregor Urban, Krzysztof J. Geras, Samira Ebrahimi Kahou, Ozlem Aslan, Shengjie Wang, Rich Caruana, Abdelrahman Mohamed, Matthai Philipose, Matt Richardson. In ICLR 2016.


Another interesting idea on the [MegaDeep to MiniDeep] and [MiniDeep to MegaDeep] front,



Net2Net: Accelerating Learning via Knowledge Transfer Tianqi Chen, Ian Goodfellow, Jonathon Shlens. In ICLR 2016.


Language Modeling with LSTMs
There was also considerable focus on methods that deal with large bodies of text. Chris Dyer (who is supposedly also going to DeepMind), gave a keynote asking the question “Should Model Architecture Reflect Linguistic Structure?” See Chris Dyer's Keynote video here. Some of his key take-aways from comparing word-level embedding vs character-level embeddings is that for different languages, different methods work better.  For languages which have a rich syntax, character-level encodings outperform word-level encodings.

Improved Transition-Based Parsing by Modeling Characters instead of Words with LSTMs Miguel Ballesteros, Chris Dyer, Noah A. Smith. In Proceedings of EMNLP 2015.

An interesting approach, with a great presentation by Ivan Vendrov, was “Order-Embeddings of Images and Language" by Ivan Vendrov, Ryan Kiros, Sanja Fidler, and Raquel Urtasun which showed a great intuitive coordinate-system-y way for thinking about concepts. I really love these coordinate system analogies and I’m all for new ways of thinking about classical problems.



Order-Embeddings of Images and Language Ivan Vendrov, Ryan Kiros, Sanja Fidler, Raquel Urtasun. In ICLR 2016. See Video here.



Training-Free Methods: Brain-dead applications of CNNs to Image Matching

These techniques use the activation maps of deep neural networks trained on an ImageNet classification task for other important computer vision tasks. These techniques employ clever ways of matching image regions and from the following ICLR paper, are applied to smart image retrieval.

Particular object retrieval with integral max-pooling of CNN activations. Giorgos Tolias, Ronan Sicre, Hervé Jégou. In ICLR 2016.

This reminds me of the RSS 2015 paper which uses ConvNets to match landmarks for a relocalization-like SLAM task.


Place Recognition with ConvNet Landmarks: Viewpoint-Robust, Condition-Robust, Training-Free. Niko Sunderhauf, Sareh Shirazi, Adam Jacobson, Feras Dayoub, Edward Pepperell, Ben Upcroft, and Michael Milford. In RSS 2015.


Gaussian Processes and Auto Encoders

Gaussian Processes used to be quite popular at NIPS, sometimes used for vision problems, but mostly “forgotten” in the era of Deep Learning. VAEs or Variational Auto Encoders used to be much more popular when pertaining was the only way to train deep neural nets. However, with new techniques like adversarial networks, people keep revisiting Auto Encoders, because we still “hope” that something as simple as an encoder / decoder network should give us the unsupervised learning power we all seek, deep down inside. VAEs got quite a lot of action but didn't make the cut for today's blog post.

Geometric Methods
Overall, very little content pertaining to the SfM / SLAM side of the vision problem was present at ICLR 2016. This kind of work is very common at CVPR, and it's a bit of a surprise that there wasn't a lot of Robotics work at ICLR. It should be noted that the techniques used in SfM/SLAM are more based on multiple-view geometry and linear algebra than the data-driven deep learning of today.

Perhaps a better venue for Robotics and Deep Learning will be the June 2016 workshop titled Are the Sceptics Right? Limits and Potentials of Deep Learning in Robotics. This workshop is being held at RSS 2016, one of the world's leading Robotics conferences.

Part III: Quo Vadis Deep Learning?

Neural Net Compression is going to be big -- real-world applications demand it. The algos guys aren't going to wait for TPU and VPUs to become mainstream. Deep Nets which can look at a picture and tell you what’s going on are going to be inside every single device which has a camera. In fact, I don’t see any reason why all cameras by 2020 won’t be able to produce a high-quality RGB image as well as a neural network response vector. New image formats will even have such “deep interpretation vectors” directly saved alongside the image. And it's all going to be a neural net, in one shape or another.

OpenAI had a strong presence at ICLR 2016, and I feel like every week a new PhD joins OpenAI. Google DeepMind and Facebook FAIR had a large number of papers. Google demoed a real-time version of deep-learning based style transfer using TensorFlow. Microsoft is no longer King of research. Startups were giving out little toys -- Clarifai even gave out free sandals. Graduates with well-tuned Deep Learning skills will continue being in high-demand, but once the next generation of AI-driven startups emerge, it is only those willing to transfer their academic skills into a product world-facing focus, aka the upcoming wave of deep entrepreneurs, that will make serious $$$.

Research-wise, arXiv is a big productivity booster. Hopefully, now you know where to place your future deep learning research bets, have enough new insights to breath some inspiration into your favorite research problem, and you've gotten a taste of where the top researchers are heading. I encourage you to turn off your computer and have a white-board conversation with your colleagues about deep learning. Grab a friend, teach him some tricks.

I'll see you all at CVPR 2016. Until then, keep learning.

Related computervisionblog.com Blog Posts

Why your lab needs a reading group. May 2012
ICCV 2015: 21 Hottest Research Papers December 2015
Deep Down the Rabbit Hole: CVPR 2015 and Beyond June 2015
The Deep Learning Gold Rush of 2015 November 2015
Deep Learning vs Machine Learning vs Pattern Recognition March 2015
Deep Learning vs Probabilistic Graphical Models April 2015
Future of Real-time SLAM and "Deep Learning vs SLAM" January 2016

Relevant Outside Links

[1] Welcome to the AI Conspiracy: The 'Canadian Mafia' Behind Tech's Latest Craze @ <re/code>
[2] The Unreasonable Effectiveness of Recurrent Neural Networks @ Andrej Karpathy's Blog
[3] Deep Learning for Robots: Learning from Large-Scale Interaction. @ Google Research Blog

Wednesday, January 13, 2016

The Future of Real-Time SLAM and Deep Learning vs SLAM

Last month's International Conference of Computer Vision (ICCV) was full of Deep Learning techniques, but before we declare an all-out ConvNet victory, let's see how the other "non-learning" geometric side of computer vision is doing.  Simultaneous Localization and Mapping, or SLAM, is arguably one of the most important algorithms in Robotics, with pioneering work done by both computer vision and robotics research communities.  Today I'll be summarizing my key points from ICCV's Future of Real-Time SLAM Workshop, which was held on the last day of the conference (December 18th, 2015).

Today's post contains a brief introduction to SLAM, a detailed description of what happened at the workshop (with summaries of all 7 talks), and some take-home messages from the Deep Learning-focused panel discussion at the end of the session.

SLAM visualizations. Can you identify any of these SLAM algorithms?

Part I: Why SLAM Matters

Visual SLAM algorithms are able to simultaneously build 3D maps of the world while tracking the location and orientation of the camera (hand-held or head-mounted for AR or mounted on a robot). SLAM algorithms are complementary to ConvNets and Deep Learning: SLAM focuses on geometric problems and Deep Learning is the master of perception (recognition) problems. If you want a robot to go towards your refrigerator without hitting a wall, use SLAM. If you want the robot to identify the items inside your fridge, use ConvNets.



Basics of SfM/SLAM: From point observation and intrinsic camera parameters, the 3D structure of a scene is computed from the estimated motion of the camera. For details, see openMVG website.

SLAM is a real-time version of Structure from Motion (SfM). Visual SLAM or vision-based SLAM is a camera-only variant of SLAM which forgoes expensive laser sensors and inertial measurement units (IMUs). Monocular SLAM uses a single camera while non-monocular SLAM typically uses a pre-calibrated fixed-baseline stereo camera rig. SLAM is prime example of a what is called a "Geometric Method" in Computer Vision. In fact, CMU's Robotics Institute splits the graduate level computer vision curriculum into a Learning-based Methods in Vision course and a separate Geometry-Based Methods in Vision course.


Structure from Motion vs Visual SLAM
Structure from Motion (SfM) and SLAM are solving a very similar problem, but while SfM is traditionally performed in an offline fashion, SLAM has been slowly moving towards the low-power / real-time / single RGB camera mode of operation. Many of the today’s top experts in Structure from Motion work for some of the world’s biggest tech companies, helping make maps better. Successful mapping products like Google Maps could not have been built without intimate knowledge of multiple-view geometry, SfM, and SLAM.  A typical SfM problem is the following: given a large collection of photos of a single outdoor structure (like the Colliseum), construct a 3D model of the structure and determine the camera's poses. The image collection is processed in an offline setting, and large reconstructions can take anywhere between hours and days.


SfM SoftwareBundler is one of the most successful SfM open source libraries

Here are some popular SfM-related software libraries:

Visual SLAM vs Autonomous Driving
While self-driving cars are one of the most important applications of SLAM, according to Andrew Davison, one of the workshop organizers, SLAM for Autonomous Vehicles deserves its own research track. (And as we'll see, none of the workshop presenters talked about self-driving cars). For many years to come it will make sense to continue studying SLAM from a research perspective, independent of any single Holy-Grail application. While there are just too many system-level details and tricks involved with autonomous vehicles, research-grade SLAM systems require very little more than a webcam, knowledge of algorithms, and elbow grease. As a research topic, Visual SLAM is much friendlier to thousands of early-stage PhD students who’ll first need years of in-lab experience with SLAM before even starting to think about expensive robotic platforms such as self-driving cars.

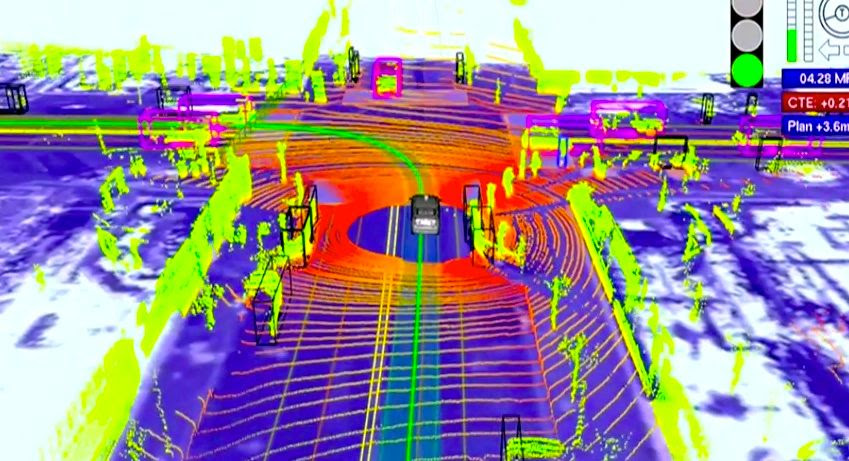

Google's Self-Driving Car's perception system. From IEEE Spectrum's "How Google's Self-Driving Car Works"

Part II: The Future of Real-time SLAM

Now it's time to officially summarize and comment on the presentations from The Future of Real-time SLAM workshop. Andrew Davison started the day with an excellent historical overview of SLAM called 15 years of vision-based SLAM, and his slides have good content for an introductory robotics course.

For those of you who don’t know Andy, he is the one and only Professor Andrew Davison of Imperial College London.  Most known for his 2003 MonoSLAM system, he was one of the first to show how to build SLAM systems from a single “monocular” camera at a time when just everybody thought you needed a stereo “binocular” camera rig. More recently, his work has influenced the trajectory of companies such as Dyson and the capabilities of their robotic systems (e.g., the brand new Dyson360).

I remember Professor Davidson from the Visual SLAM tutorial he gave at the BMVC Conference back in 2007. Surprisingly very little has changed in SLAM compared to the rest of the machine-learning heavy work being done at the main vision conferences. In the past 8 years, object recognition has undergone 2-3 mini revolutions, while today's SLAM systems don't look much different than they did 8 years ago. The best way to see the progress of SLAM is to take a look at the most successful and memorable systems. In Davison’s workshop introduction talk, he discussed some of these exemplary systems which were produced by the research community over the last 10-15 years:

  • MonoSLAM
  • PTAM
  • FAB-MAP
  • DTAM
  • KinectFusion

Davison vs Horn: The next chapter in Robot Vision
Davison also mentioned that he is working on a new Robot Vision book, which should be an exciting treat for researchers in computer vision, robotics, and artificial intelligence. The last Robot Vision book was written by B.K. Horn (1986), and it’s about time for an updated take on Robot Vision.

A new robot vision book?

While I’ll gladly read a tome that focuses on the philosophy of robot vision, personally I would like the book to focus on practical algorithms for robot vision, like the excellent Multiple View Geometry book by Hartley and Zissermann or Probabilistic Robotics by Thrun, Burgard, and Fox. A "cookbook" of visual SLAM problems would be a welcome addition to any serious vision researcher's collection.

Related: Davison's 15-years of vision-based SLAM slides

Talk 1: Christian Kerl on Continuous Trajectories in SLAM
The first talk, by Christian Kerl, presented a dense tracking method to estimate a continuous-time trajectory. The key observation is that most SLAM systems estimate camera poses at a discrete number of time steps (either they key frames which are spaced several seconds apart, or the individual frames which are spaced approximately 1/25s apart).


Continuous Trajectories vs Discrete Time Points. SLAM/SfM usually uses discrete time points, but why not go continuous?

Much of Kerl’s talk was focused on undoing the damage of rolling shutter cameras, and the system demo’ed by Kerl paid meticulous attention to modeling and removing these adverse rolling shutter effects.

Undoing the damage of rolling shutter in Visual SLAM.


Related: Kerl's Dense continous-time tracking and mapping slides.
Related: Dense Continuous-Time Tracking and Mapping with Rolling Shutter RGB-D Cameras (C. Kerl, J. Stueckler, D. Cremers), In IEEE International Conference on Computer Vision (ICCV), 2015. [pdf]

Talk 2: Semi-Dense Direct SLAM by Jakob Engel
LSD-SLAM came out at ECCV 2014 and is one of my favorite SLAM systems today! Jakob Engel was there to present his system and show the crowd some of the coolest SLAM visualizations in town. LSD-SLAM is an acronym for Large-Scale Direct Monocular SLAM. LSD-SLAM is an important system for SLAM researchers because it does not use corners or any other local features. Direct tracking is performed by image-to-image alignment using a coarse-to-fine algorithm with a robust Huber loss. This is quite different than the feature-based systems out there. Depth estimation uses an inverse depth parametrization (like many other SLAM systems) and uses a large number or relatively small baseline image pairs. Rather than relying on image features, the algorithms is effectively performing “texture tracking”. Global mapping is performed by creating and solving a pose graph "bundle adjustment" optimization problem, and all of this works in real-time. The method is semi-dense because it only estimates depth at pixels solely near image boundaries. LSD-SLAM output is denser than traditional features, but not fully dense like Kinect-style RGBD SLAM.


LSD-SLAM in Action: LSD-SLAM generates both a camera trajectory and a semi-dense 3D scene reconstruction. This approach works in real-time, does not use feature points as primitives, and performs direct image-to-image alignment.

Engel gave us an overview of the original LSD-SLAM system as well as a handful of new results, extending their initial system to more creative applications and to more interesting deployments. (See paper citations below)

Related: LSD-SLAM Open-Source Code on github LSD-SLAM project webpage
Related: LSD-SLAM: Large-Scale Direct Monocular SLAM (J. Engel, T. Schöps, D. Cremers), In European Conference on Computer Vision (ECCV), 2014. [pdf] [youtube video]

An extension to LSD-SLAM, Omni LSD-SLAM was created by the observation that the pinhole model does not allow for a large field of view. This work was presented at IROS 2015 (Caruso is first author) and allows a large field of view (ideally more than 180 degrees). From Engel’s presentation it was pretty clear that you can perform ballerina-like motions (extreme rotations) while walking around your office and holding the camera. This is one of those worst-case scenarios for narrow field of view SLAM, yet works quite well in Omni LSD-SLAM.

Omnidirectional LSD-SLAM Model. See Engel's Semi-Dense Direct SLAM presentation slides.

Related: Large-Scale Direct SLAM for Omnidirectional Cameras (D. Caruso, J. Engel, D. Cremers), In International Conference on Intelligent Robots and Systems (IROS), 2015.  [pdf] [youtube video]

Stereo LSD-SLAM is an extension of LSD-SLAM to a binocular camera rig. This helps in getting the absolute scale, initialization is instantaneous, and there are no issues with strong rotation. While monocular SLAM is very exciting from an academic point of view, if your robot is a 30,000$ car or 10,000$ drone prototype, you should have a good reason to not use a two+ camera rig. Stereo LSD-SLAM performs quite competitively on SLAM benchmarks.


Stereo LSD-SLAM. Excellent results on KITTI vehicle-SLAM dataset.

Stereo LSD-SLAM is quite practical, optimizes a pose graph in SE(3), and includes a correction for auto exposure. The goal of auto-exposure correcting is to make the error function invariant to affine lighting changes. The underlying parameters of the color-space affine transform are estimated during matching, but thrown away to estimate the image-to-image error. From Engel's talk, outliers (often caused by over-exposed image pixels) tend to be a problem, and much care needs to be taken to care of their effects.

Related: Large-Scale Direct SLAM with Stereo Cameras (J. Engel, J. Stueckler, D. Cremers), In International Conference on Intelligent Robots and Systems (IROS), 2015.  [pdf] [youtube video]

Later in his presentation, Engel gave us a sneak peak on new research about integrating both stereo and inertial sensors. For details, you’ll have to keep hitting refresh on Arxiv or talk to Usenko/Engel in person. On the applications side, Engel's presentation included updated videos of an Autonomous Quadrotor driven by LSD-SLAM. The flight starts with an up-down motion to get the scale estimate and a free-space octomap is used to estimate the free-space so that the quadrotor can navigate space on its own. Stay tuned for an official publication...
Quadrotor running Stereo LSD-SLAM.

The story of LSD-SLAM is also the story of feature-based vs direct-methods and Engel gave both sides of the debate a fair treatment. Feature-based methods are engineered to work on top of Harris-like corners, while direct methods use the entire image for alignment. Feature-based methods are faster (as of 2015), but direct methods are good for parallelism. Outliers can be retroactively removed from feature-based systems, while direct methods are less flexible w.r.t. outliners. Rolling shutter is a bigger problem for direct methods and it makes sense to use a global shutter or a rolling shutter model (see Kerl’s work). Feature-based methods require making decisions using incomplete information, but direct methods can use much more information. Feature-based methods have no need for good initialization and direct-based methods need some clever tricks for initialization. There is only about 4 years of research on direct methods and 20+ on sparse methods. Engel is optimistic that direct methods will one day rise to the top, and so am I.


Feature-based vs direct methods of building SLAM systems. Slide from Engel's talk.

At the end of Engel's presentation, Davison asked about semantic segmentation and Engel wondered whether semantic segmentation can be performed directly on semi-dense "near-image-boundary" data.  However, my personal opinion is that there are better ways to apply semantic segmentation to LSD-like SLAM systems. Semi-dense SLAM can focus on geometric information near boundaries, while object recognition can focus on reliable semantics away from the same boundaries, potentially creating a hybrid geometric/semantic interpretation of the image.

Related: Engel's Semi-Dense Direct SLAM presentation slides

Talk 3: Sattler on The challenges of Large-Scale Localization and Mapping
Torsten Sattler gave a talk on large-scale localization and mapping. The motivation for this work is to perform 6-dof localization inside an existing map, especially for mobile localization. One of the key points in the talk was that when you are using traditional feature-based methods, storing your descriptors soon becomes very costly. Techniques such as visual vocabularies (remember product quantization?) can significantly reduce memory overhead, and with clever optimization at some point storing descriptors no longer becomes the memory bottleneck.

Another important take-home message from Sattler’s talk is that the number of inliers is not actually a good confidence measure for camera pose estimation.  When the feature point are all concentrated in a single part of the image, camera localization can be kilometers away! A better measure of confidence is the “effective inlier count” which looks at the area spanned by the inliers as a fraction of total image area.  What you really want is feature matches from all over the image — if the information is spread out across the image you get a much better pose estimate.

Sattler’s take on the future of real-time slam is the following: we should focus on compact map representations, we should get better at understanding camera pose estimate confidences (like down-weighing features from trees), we should work on more challenging scenes (such as worlds with planar structures and nighttime localization against daytime maps).


Mobile Localisation: Sattler's key problem is localizing yourself inside a large city with a single smartphone picture


Related: Scalable 6-DOF Localization on Mobile Devices. Sven Middelberg, Torsten Sattler, Ole Untzelmann, Leif Kobbelt. In ECCV 2014. [pdf]
Related: Torsten Sattler 's The challenges of large-scale localisation and mapping slides

Talk 4: Mur-Artal on Feature-based vs Direct-Methods
Raúl Mur-Artal, the creator of ORB-SLAM, dedicated his entire presentation to the Feature-based vs Direct-method debate in SLAM and he's definitely on the feature-based side. ORB-SLAM is available as an open-source SLAM package and it is hard to beat. During his evaluation of ORB-SLAM vs PTAM it seems that PTAM actually fails quite often (at least on the TUM RGB-D benchmark). LSD-SLAM errors are also much higher on the TUM RGB-D benchmark than expected.

Feature-Based SLAM vs Direct SLAM. See Mur-Artal's Should we still do sparse feature based SLAM? presentation slides

Related: Mur-Artal's Should we still do sparse-feature based SLAM? slides
Related: Monocular ORB-SLAM R. Mur-Artal, J. M. M. Montiel and J. D. Tardos. A versatile and Accurate Monocular SLAM System. IEEE Transactions on Robotics. 2015 [pdf]
Related: ORB-SLAM Open-source code on github, Project Website

Talk 5: Project Tango and Visual loop-closure for image-2-image constraints
Simply put, Google's Project Tango is the world' first attempt at commercializing SLAM. Simon Lynen from Google Zurich (formerly ETH Zurich) came to the workshop with a Tango live demo (on a tablet) and a presentation on what's new in the world of Tango. In case you don't already know, Google wants to put SLAM capabilities into the next generation of Android Devices.




Google's Project Tango needs no introduction.

The Project Tango presentation discussed a new way of doing loop closure by finding certain patters in the image-to-image matching matrix. This comes from the “Placeless Place Recognition” work. They also do online bundle adjustment w/ vision-based loop closure.


Loop Closure inside a Project Tango? Lynen et al's Placeless Place Recognition. The image-to-image matrix reveals a new way to look for loop-closure. See the algorithm in action in this youtube video.

The Project Tango folks are also working on combing multiple crowd-sourced maps at Google, where the goals to combine multiple mini-maps created by different people using Tango-equipped devices.

Simon showed a video of mountain bike trail tracking which is actually quite difficult in practice. The idea is to go down a mountain bike trail using a Tango device and create a map, then the follow-up goal is to have a separate person go down the trail. This currently “semi-works” when there are a few hours between the map building and the tracking step, but won’t work across weeks/months/etc.

During the Tango-related discussion, Richard Newcombe pointed out that the “features” used by Project Tango are quite primitive w.r.t. getting a deeper understanding of the environment, and it appears that Project Tango-like methods won't work on outdoor scenes where the world is plagued by non-rigidity, massive illumination changes, etc.  So are we to expect different systems being designed for outdoor systems or will Project Tango be an indoor mapping device?

Related: Placeless Place Recognition. Lynen, S. ; Bosse, M. ; Furgale, P. ; Siegwart, R. In 3DV 2014.

Talk 6: ElasticFusion is DenseSLAM without a pose-graph
ElasticFusion is a dense SLAM technique which requires a RGBD sensor like the Kinect. 2-3 minutes to obtain a high-quality 3D scan of a single room is pretty cool. A pose-graph is used behind the scenes of many (if not most) SLAM systems, and this technique has a different (map-centric) approach. The approach focuses on building a map, but the trick is that the map is deformable, hence the name ElasticFusion. The “Fusion” part of the algorithm is in homage to KinectFusion which was one of the first high quality kinect-based reconstruction pipelines. Also surfels are used as the underlying primitives.


Image from Kintinuous, an early version of Whelan's Elastic Fusion.


Recovering light sources: we were given a sneak peak at new unpublished work from Imperial College London / dyson Robotics Lab. The idea is that detecting the light source direction and detecting specularities, you can improve 3D reconstruction results. Cool videos of recovering light source locations which work for up to 4 separate lights.

Related: Map-centric SLAM with ElasticFusion presentation slides
Related: ElasticFusion: Dense SLAM Without A Pose Graph. Whelan, Thomas and Leutenegger, Stefan and Salas-Moreno, Renato F and Glocker, Ben and Davison, Andrew J. In RSS 2015.

Talk 7: Richard Newcombe’s DynamicFusion
Richard Newcombe's (whose recently formed company was acquired by Oculus), was the last presenter.  It's really cool to see the person behind DTAM, KinectFusion, and DynamicFusion now working in the VR space.


Newcombe's Dynamic Fusion algorithm. The technique won the prestigious CVPR 2015 best paper award, and to see it in action just take a look at the authors' DynamicFusion Youtube video.


RelatedDynamicFusion: Reconstruction and Tracking of Non-rigid Scenes in Real-Time, Richard A. Newcombe, Dieter Fox, Steven M. Seitz. In CVPR 2015. [pdf] [Best-Paper winner]
Related: SLAM++: Simultaneous Localisation and Mapping at the Level of Objects Renato F. Salas-Moreno, Richard A. Newcombe, Hauke Strasdat, Paul H. J. Kelly and Andrew J. Davison (CVPR 2013)
Related: KinectFusion: Real-Time Dense Surface Mapping and Tracking Richard A. Newcombe Shahram Izadi,Otmar Hilliges, David Molyneaux, David Kim, Andrew J. Davison, Pushmeet Kohli, Jamie Shotton, Steve Hodges, Andrew Fitzgibbon (ISMAR 2011, Best paper award!)


Workshop Demos
During the demo sessions (held in the middle of the workshop), many of the presenter showed off their SLAM systems in action. Many of these systems are available as open-source (free for non-commercial use?) packages, so if you’re interested in real-time SLAM, downloading the code is worth a shot. However, the one demo which stood out was Andrew Davison’s showcase of his MonoSLAM system from 2004. Andy had to revive his 15-year old laptop (which was running Redhat Linux) to show off his original system, running on the original hardware. If the computer vision community is going to oneway decide on a “retro-vision” demo session, I’m just going to go ahead and nominate Andy for the best-paper prize, right now.


Andry's Retro-Vision SLAM Setup (Pictured on December 18th, 2015)


It was interesting to watch the SLAM system experts wave their USB cameras around, showing their systems build 3D maps of the desk-sized area around their laptops.  If you carefully look at the way these experts move the camera around (i.e., smooth circular motions), you can almost tell how long a person has been working with SLAM. When the non-experts hold the camera, probability of tracking failure is significantly higher.

I had the pleasure of speaking with Andy during the demo session, and I was curious which line of work (in the past 15 years) surprised him the most. His reply was that PTAM, which showed how to perform real-time bundle adjustment, surprised him the most. The PTAM system was essentially a MonoSLAM++ system, but the significantly improved tracking results were due to taking a heavyweight algorithm (bundle adjustment) and making it real-time — something which Andy did not believe was possible in the early 2000s.

Part III: Deep Learning vs SLAM

The SLAM panel discussion was a lot of fun. Before we jump to the important Deep Learning vs SLAM discussion, I should mention that each of the workshop presenters agreed that semantics are necessary to build bigger and better SLAM systems. There were lots of interesting mini-conversations about future directions. During the debates, Marc Pollefeys (a well-known researcher in SfM and Multiple-View Geometry) reminded everybody that Robotics is the killer application of SLAM and suggested we keep an eye on the prize. This is quite surprising since SLAM was traditionally applied to Robotics problems, but the lack of Robotics success in the last few decades (Google Robotics?) has shifted the focus of SLAM away from Robots and towards large-scale map building (ala Google Maps) and Augmented Reality. Nobody at this workshop talked about Robots.

Integrating semantic information into SLAM
There was a lot of interest in incorporating semantics into today’s top-performing SLAM systems. When it comes to semantics, the SLAM community is unfortunately stuck in the world of bags-of-visual-words, and doesn't have new ideas on how to integrate semantic information into their systems. On the other end, we’re now seeing real-time semantic segmentation demos (based on ConvNets) popping up at CVPR/ICCV/ECCV, and in my opinion SLAM needs Deep Learning as much as the other way around.


Integrating semantics into SLAM is often talk about, but it is easier said than done.
Figure 6.9 (page 142) from Moreno's PhD thesis: Dense Semantic SLAM

"Will end-to-end learning dominate SLAM?"
Towards the end of the SLAM workshop panel, Dr. Zeeshan Zia asked a question which startled the entire room and led to a memorable, energy-filled discussion. You should have seen the look on the panel’s faces. It was a bunch of geometers being thrown a fireball of deep learning. Their facial expressions suggest both bewilderment, anger, and disgust. "How dare you question us?" they were thinking. And it is only during these fleeting moments that we can truly appreciate the conference experience. Zia's question was essentially: Will end-to-end learning soon replace the mostly manual labor involved in building today’s SLAM systems?

Zia's question is very important because end-to-end trainable systems have been slowly creeping up on many advanced computer science problems, and there's no reason to believe SLAM will be an exception. A handful of the presenters pointed out that current SLAM systems rely on too much geometry for a pure deep-learning based SLAM system to make sense -- we should use learning to make the point descriptors better, but leave the geometry alone. Just because you can use deep learning to make a calculator, it doesn't mean you should.


Learning Stereo Similarity Functions via ConvNets, by Yan LeCun and collaborators.


While many of the panel speakers responded with a somewhat affirmative "no", it was Newcombe which surprisingly championed what the marriage of Deep Learning and SLAM might look like.

Newcombe's Proposal: Use SLAM to fuel Deep Learning
Although Newcombe didn’t provide much evidence or ideas on how Deep Learning might help SLAM, he provided a clear path on how SLAM might help Deep Learning.  Think of all those maps that we've built using large-scale SLAM and all those correspondences that these systems provide — isn’t that a clear path for building terascale image-image "association" datasets which should be able to help deep learning? The basic idea is that today's SLAM systems are large-scale "correspondence engines" which can be used to generate large-scale datasets, precisely what needs to be fed into a deep ConvNet.

Concluding Remarks
There is quite a large disconnect between the kind of work done at the mainstream ICCV conference (heavy on machine learning) and the kind of work presented at the real-time SLAM workshop (heavy on geometric methods like bundle adjustment). The mainstream Computer Vision community has witnessed several mini-revolutions within the past decade (e.g., Dalal-Triggs, DPM, ImageNet, ConvNets, R-CNN) while the SLAM systems of today don’t look very different than they did 8 years ago. The Kinect sensor has probably been the single largest game changer in SLAM, but the fundamental algorithms remain intact.
Integrating semantic information: The next frontier in Visual SLAM.
Brain image from Arwen Wallington's blog post.

Today’s SLAM systems help machines geometrically understand the immediate world (i.e., build associations in a local coordinate system) while today’s Deep Learning systems help machines reason categorically (i.e., build associations across distinct object instances). In conclusion, I share Newcombe and Davison excitement in Visual SLAM, as vision-based algorithms are going to turn Augmented and Virtual Reality into billion dollar markets. However, we should not forget to keep our eyes on the "trillion-dollar" market, the one that's going to redefine what it means to "work" -- namely Robotics. The day of Robot SLAM will come soon.
